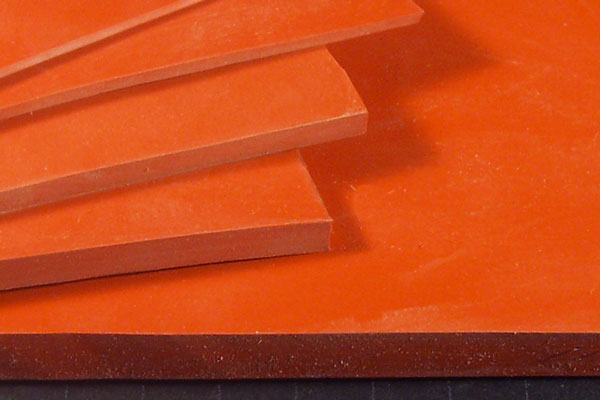

Solid Silicone Sheeting

  • Silicone Sheeting

Solid Silicone Sheeting, 60 Durometer Shore-A Solid Silicone, 302°F - 480°F (intermittently 500°F) (powder coating, e-coating, plating, and anodizing)

Viadon's Silicone Rubber Sheets are a great solution for powder coating, e-coating, plating and anodizing masking situations for irregularly shaped holes and areas. With our in-house ability to die-cut the sheets to any shape, quick and low cost re-usable masking, gaskets, pads, washers or seals can be made quickly and easily.

Silicone sheets are available in solid or sponge & foam form, and can also be made with pressure sensitive adhesive backing. Capable of withstanding temperatures up to 480°F (intermittently 500°F) without adhesive / 302°F max service temperature with a acrylic pressure-sensitive adhesive.

  • Can be die-cut to a huge variety of sizes and shapes.
  • In-stock sheeting is 60 durometer but other durometers can be custom ordered.

Try a FREE sample of Viadon's silicone sheeting and see if it's right for your project - Contact Us for more information! Stock items are subject to availability, but are usually available for shipment within 24 hours.
Ask about our other available rubber-like materials in sheet-roll form: EPDM, Neoprene, SBR, FDA Grade Silicone, Viton.

  • Available Sheeting

    Reusable Sheeting, 480°F (intermittently 500°F)

    Part Number Thickness (inches) Sheet Size (inches) Quantity (sheets)
    SSHT062 0.062 36x36 Add to Shopping List
    SSHT093 0.093 36x36 Add to Shopping List
    SSHT125 0.125 36x36 Add to Shopping List
    SSHT187 0.187 36x36 Add to Shopping List
    SSHT250 0.250 36x36 Add to Shopping List
    SSHT375 0.375 36x36 Add to Shopping List
    SSHT500 0.500 36x36 Add to Shopping List

    Sheeting with Adhesive, 302°F max service temperature

    (Suitable for one time use only, 450°F; hi-temp acrylic-based pressure sensitive adhesive)
    Contact Viadon for information about other adhesives available on this material - MOQ and additional lead times apply.

    Part Number Thickness (inches) Sheet Size (inches) Quantity (sheets)
    SSHT062-A 0.062 36x36 Add to Shopping List
    SSHT093-A 0.093 36x36 Add to Shopping List
    SSHT125-A 0.125 36x36 Add to Shopping List
    SSHT187-A 0.187 36x36 Add to Shopping List
    SSHT250-A 0.250 36x36 Add to Shopping List
    SSHT375-A 0.375 36x36 Add to Shopping List
    SSHT500-A 0.500 36x36 Add to Shopping List

    Can be die cut to almost any size or shape. Try a FREE sample of Viadon's silicone sheeting and see if it's right for your project - Contact Us for more information!

    Ask us about our other available sheeting materials: EPDM, Neoprene, SBR, FDA Grade Silicone, Viton.

  • Technical Specifications
    • Reusable Sheeting Temperature Range: up to 480°F (intermittently 500°F)
    • Sheeting w/Adhesive Temperature Range: up to 302°F max
    • Material: Silicone
    • Colors: Orange, Grey, Red, Black
    • Typical Uses: gaskets, die cuts for powder coating, e-coating, plating, and anodizing. Can be used for gaskets, pads, washers, and seals.
    • Adhesive: silicone-based pressure sensitive adhesive
    • Reusable non-adhesive sheeting.
    • Chemical Resistance.
  • Helpful Hints

    Typical Uses: gaskets, die cuts for powder coating, e-coating, plating, and anodizing.



    Try a FREE sample to check for compatibility with your next project - Contact Us for more information!
