VFC - Silicone Flange Caps

  • VFC Silicone Flange Caps
  • Here's how to calculate the correct diameter cap to use for masking parts in powdercoating,
                                            anodizing, plating, ecoating and wet spray painting.
    How to Determine Correct Masking Cap Size
  • VFC Silicone Flange Caps
flange cap diagram

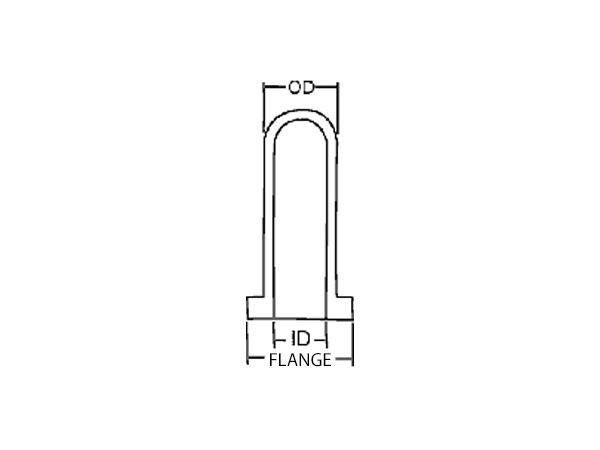

Diagram of Dimensions for Flange Caps

Silicone Flange Caps, 600°F (powder coating, e-coating, plating, and anodizing)

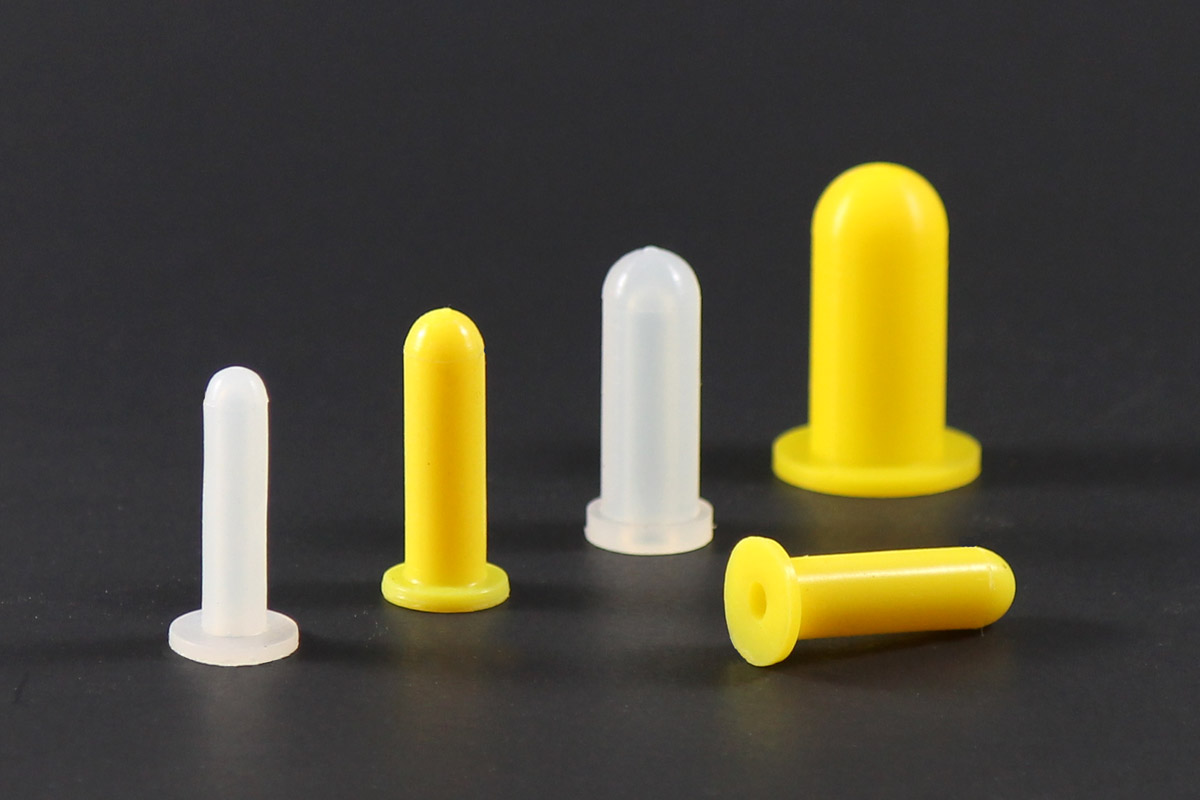

Viadon's Silicone Flange Caps (VFC's) are ideal for masking studs or bolts and a circular area around them, typically for grounding purposes. Alternatively, try using them as a plug - the area around a hole can then be masked by the flange - for instance, where a washer or grounding wire might need to be. They have also been used successfully as an insulation for wire harnesses (by cutting off the tip).

The silicone material from which they are made is capable of withstanding temperatures up to 600°F / 315°C. These reusable caps also have great heat resistance.

CUSTOM SIZES AVAILABLE WITH LOW COST TOOLING.

Try a FREE sample of a flange cap today – Contact Us for a more information! Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Available Products
    Part Number Thread Size ID (inches) OD (inches) Flange Diameter Length (inches) Quantity / Bag Quantity (bags)
    VFC125-0500 6-32 0.125 0.260 0.500 1 500 Add to Shopping List
    VFC146-0472 M4 0.146 0.260 0.472 1 500 Add to Shopping List
    VFC156-0500 8-32 0.156 0.320 0.500 1 500 Add to Shopping List
    VFC172-0500 10-24 0.172 0.385 0.500 1 500 Add to Shopping List
    VFC220-0787 M6 0.220 0.340 0.787 1 500 Add to Shopping List
    VFC223-0720 M6 0.223 0.343 0.720 1 500 Add to Shopping List
    VFC240-0500 1/4-20 0.240 0.358 0.500 1 250 Add to Shopping List
    VFC376-0825 M10 0.376 0.530 0.825 1 250 Add to Shopping List

    CUSTOM SIZES AVAILABLE WITH LOW COST TOOLING.

    Try a FREE sample of a flange cap today – Contact Us for a more information! Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Technical Specifications
    • Temperature Range: Up to 600°F / 315°C
    • Typical Uses: Masking studs and threaded bolts. Ideal for powder coating, e-coating, plating, and anodizing.
    • Material: Silicone
    • Color: White, Yellow
    • Excellent heat resistance.
    • Re-usable.

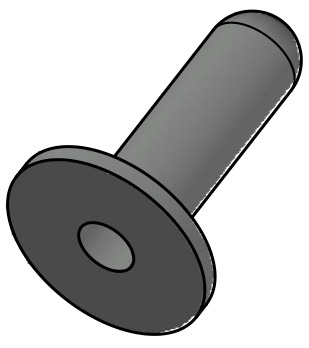

    Flange Cap

    flange cap diagram

    Diagram of Dimensions for Flange Caps



    CUSTOM SIZES AVAILABLE WITH LOW COST TOOLING.

    Try a FREE sample of a flange cap today – Contact Us for a more information!

  • Masking 101 Helpful Hints

    Silicone flange caps fit best when the ID is 2 - 4% smaller than the stud or thread they are used to mask. Look for an OD that is 2 - 5% larger when using them as a plug.

    • Can be used either as a cap or a plug.
    • The washer area provides a founding area around the base of holes and studs.
    • Ideal for use in powder coating, e-coating, plating, and anodizing.
    • Use in temperatures up to 600°F / 315°C.



    Need a custom size not listed here? Contact Us today for a low-cost tooling quote!
