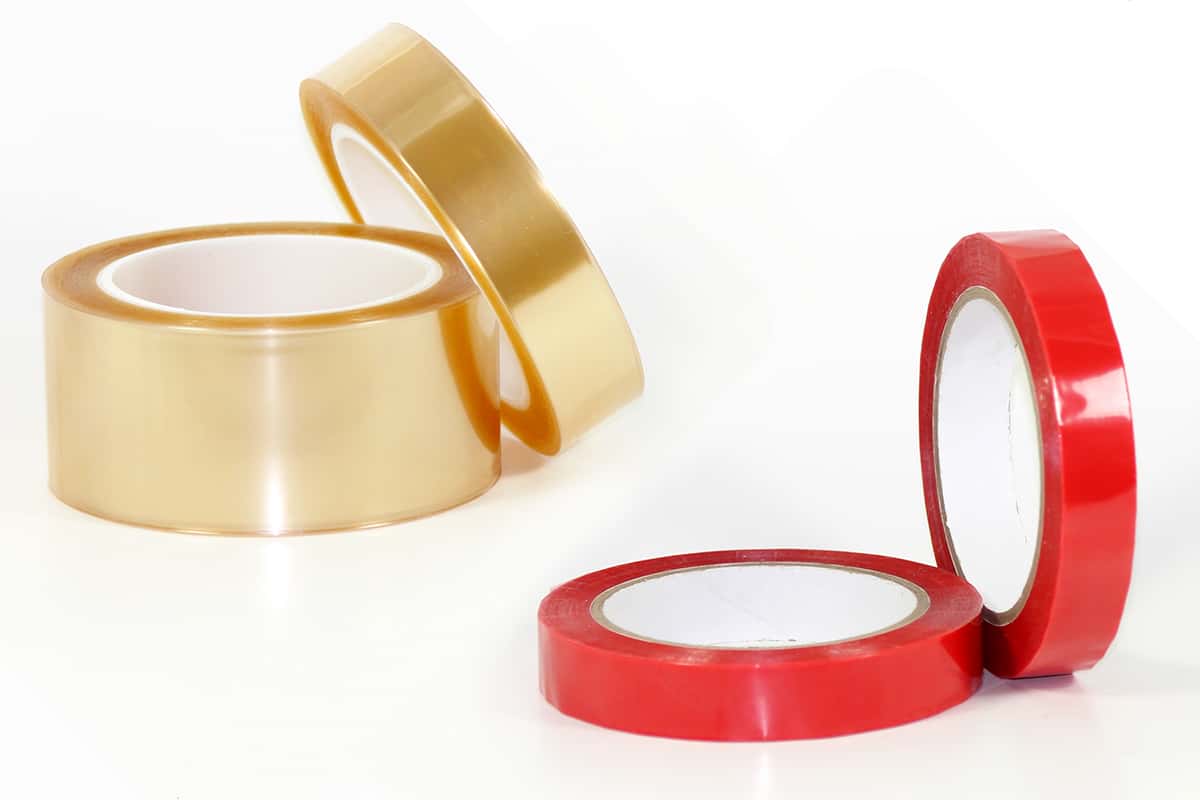

VT929 Polyester Tapes

  • red-clear-polyester-tape
  • clear-polyester-tape
  • red-polyester-tape

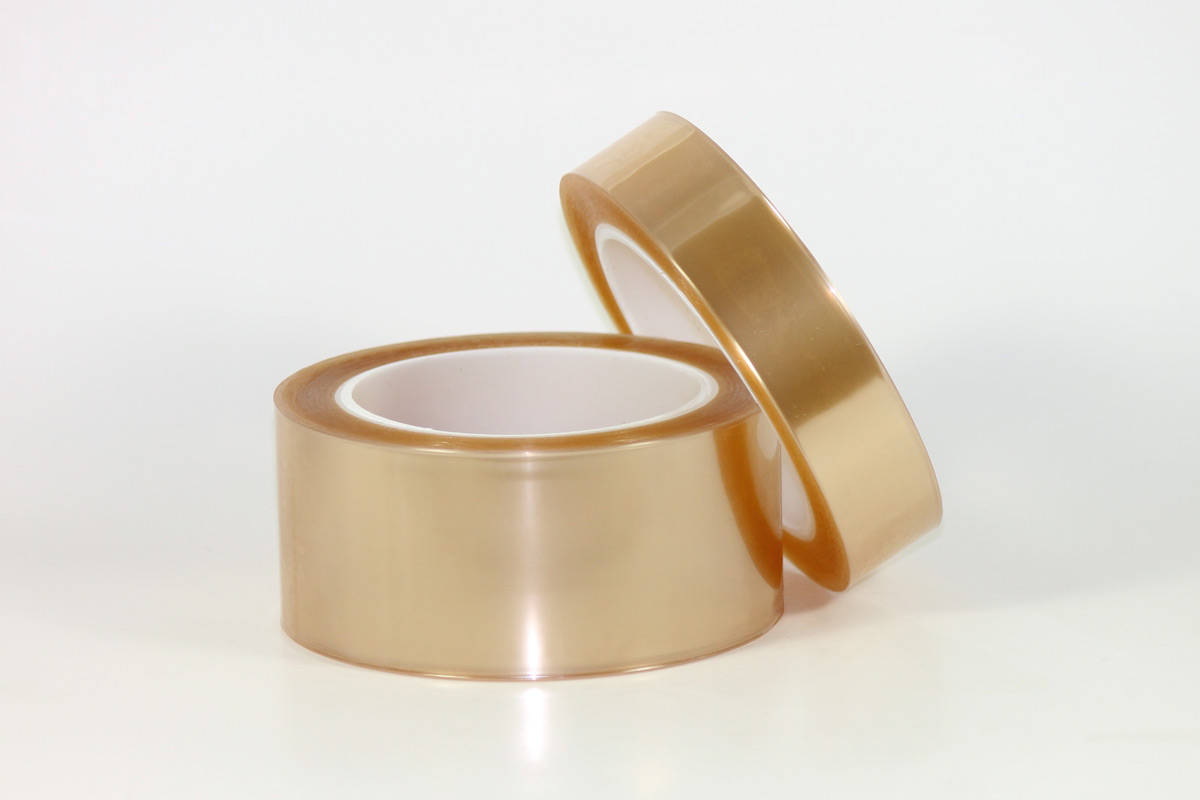

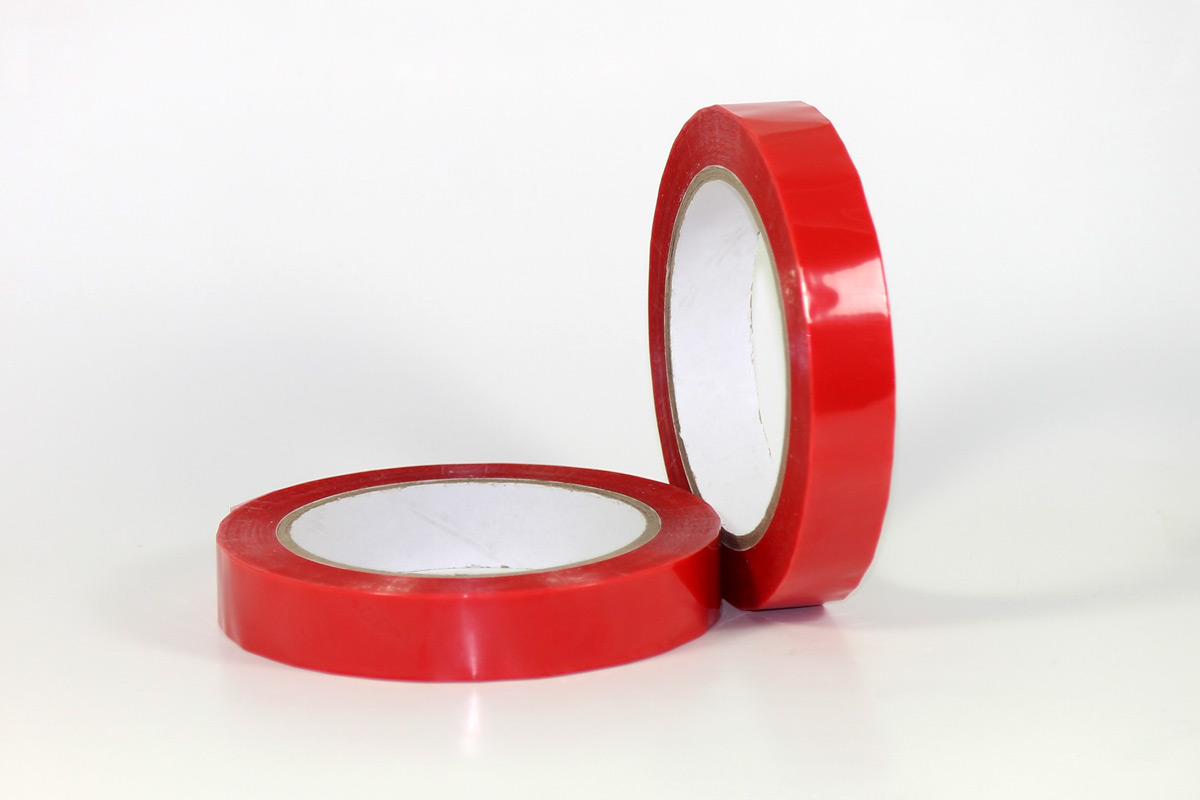

Red/Clear Polyester Splicing Tape, 385°F (powder coating, e-coating, anodizing, plating, painting, splicing)

The VT929 polyester splicing tape is available in red and clear - all with the same conformable, low profile 1 mil carrier / 1.5 mil silicone based adhesive system (2.4 mil total thickness) and moderate adhesion characteristics at 36 oz/in per inch of width.

At 35 oz./in of tensile strength, this tape will withstand the rigors required of high-strength splicing and protection environments. Able to tolerate intermittent temperatures to 385°F, this tape also makes an excellent plating tape for printed circuit boards. Offers clean removal even after extended periods of adhesion.

Available in red and clear for ease in identification of various materials or master roll location points.

Rolls are 72 yards long and can be cut in custom widths upon request. Viadon slits all tapes in-house! PLEASE Contact Us if you do not see the width of tape you need listed below. Single roll and case quantities are available. VT929 red & clear splicing tapes data sheet available in Technical Specifications tab, below.

  • Available Widths
    Part Number Width (inches) Length (yards) Rolls / Case Quantity (rolls)
    VT929-250 0.250 72 144 Add to Shopping List
    VT929-375 0.375 72 96 Add to Shopping List
    VT929-500 0.500 72 72 Add to Shopping List
    VT929-625 0.625 72 60 Add to Shopping List
    VT929-750 0.750 72 48 Add to Shopping List
    VT929-875 0.875 72 40 Add to Shopping List
    VT929-1000 1 72 36 Add to Shopping List
    VT929-1250 1.25 72 32 Add to Shopping List
    VT929-1500 1.50 72 24 Add to Shopping List
    VT929-1750 1.75 72 24 Add to Shopping List
    VT929-2000 2 72 24 Add to Shopping List
    VT929-2500 2.50 72 12 Add to Shopping List
    VT929-3000 3 72 12 Add to Shopping List
    VT929-3500 3.50 72 8 Add to Shopping List
    VT929-4000 4 72 8 Add to Shopping List
    VT929-5000 5 72 8 Add to Shopping List
    VT929-6000 6 72 8 Add to Shopping List

    PLEASE Contact Us if you do not see the width of tape you need.

    Single roll and case quantities are available.

    NOTE: Please specify color of tape when ordering.
    * All tapes are slit to width at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Technical Specifications
    • Click here for VT929 red & clear splicing tapes data sheet
    • Total Thickness: 2.4 mil
    • Temperature Range: -65°F to 385°F
    • Typical Masking Uses: Plating for printed circuit boards.
    • Typical Splicing Uses: Silicone coated release papers, films, and other substrates.
    • Color: Red and Clear
    • Carrier: 1 mil polyester film.
    • Adhesive: 1.4 mil silicone-based, pressure-sensitive adhesive system
    • Peel Adhesion: 36 oz/in of width
    • Tensile Strength: 35 oz/inch
    • Excellent resistance to heat, shrinking, and solvents.
    • Clean removal, no residue.
    • Shelf life: 12 months from date of purchase



    NOTE: Please specify color of tape when ordering.
    * All tapes are slit to width at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Masking 101 Helpful Hints
    • Push down hard! This is a pressure sensitive adhesive tape - pressure is required for it to adhere properly to parts.
    • Clean parts thoroughly before applying tape.
    • Apply tape to dry surfaces only.
    • Tape is for intermittent, one-time use only.
    • Store rolls on end in a cool, dry place.
    • Shelf life is 12 months from date of purchase
