Saint-Gobain CHR 2925-7 Laminated Glass & Foil Thermal Spray Tape

  • 2925-7 Laminated Glass and Foil Cloth Tape
  • 2925-7 laminated glass and foil cloth tape

F2925-7 500°F masking tape for media/shot blasting, thermal spray, HVOF and plasma spray applications

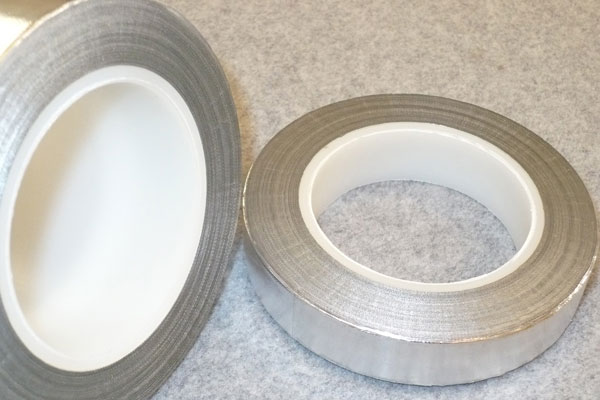

The Saint-Gobain CHR 2925-7 (F2925-7) is a 7-mil thermal spray masking tape engineered specifically for HVOF, plasma spray, and grit blasting applications. This rugged multi-layer laminate features aluminum foil bonded to glass fabric with a high-performance silicone adhesive rated for 500°F.

Designed for extreme environments, it provides superior heat reflectivity and abrasion resistance while maintaining conformability. Saint-Gobain CHR 2925-7 is available from Viadon with precision in-house slitting, ensuring you receive this high-performance masking solution in the exact widths required for your project.

Tape made in the USA graphic

F-2925-7 is typically in-stock and can ship same-day. There are several additional St. Gobain laminated foil / glass tapes listed in the table below, which are Non-Stock items available at slightly longer lead times.

Viadon slits all tapes in-house! PLEASE Contact Us if you do not see the width of tape you need listed below.

Items with a check-mark are available in single rolls and/or case quantities. Other materials have minimum orders and additional lead times; Contact Us for more information. St. Gobain F2925-7 multi-layer thermal spray tape data sheet available in Technical Specifications tab, below.

  • Available Products

    There are several additional laminated foil / glass tapes listed below, some of which are Non-Stock items available at slightly longer lead times.
    Items with a check-mark are available in single rolls and/or case quantities.

    Stock Tape

    Part Number Width (inches) Length (yards) Rolls / Case Quantity (rolls)
    F2925-7-1/4 0.250 36 144 Add to Shopping List
    F2925-7-1/2 0.500 36 72 Add to Shopping List
    F2925-7-3/4 0.750 36 48 Add to Shopping List
    F2925-7-1 1 36 36 Add to Shopping List
    F2925-7-1.5 1.50 36 24 Add to Shopping List
    F2925-7-2 2 36 24 Add to Shopping List
    F2925-7-3 3 36 12 Add to Shopping List
    F2925-7-4 4 36 8 Add to Shopping List

    NOTE: Tape widths listed above are typical, but material can be slit to many other widths; inquire about other options.



    Available Thickness

    Part Number Total Thickness (inches) Backing Thickness (inches) Adhesion to Steel (oz/inches) Operating Temperature (°F / °C) Tape Construction Materials
    F2925-7 Stock Item 0.007 0.0025 60 -100° to 500° / -73° to 260° Foil and Glass cloth, laminated
    2995-11R 0.012 0.007 45 -100° to 500° / -73° to 260° Foil and Glass cloth, laminated
    6004 0.008 0.0025 60 -100° to 500° / -73° to 260° Foil and Glass cloth, laminated
    2925-11 0.011 0.0075 75 -100° to 500° / -73° to 260° Foil and Glass cloth, laminated

    stock-item Stock items: Subject to availability, but usually available for shipment within 24 hours of order. Add items to Shopping List below and send to us for fast price quote.

  • Technical Specifications
    • Click here for St. Gobain F2925-7 multi-layer thermal spray tape data sheet
    • Total Thickness: 0.007 inches
    • Backing Thickness: 0.0025 inches
    • Temperature Range: -100°F to 500°F
    • Typical Uses: Grit-blasting and thermal spray applications.
    • Color: Silver
    • Adhesive: Silicone
    • Adhesion to Steel: 60 oz./inches
    • Tape Construction Materials: Foil and Glass cloth, laminated
    • Shelf life: 12 months from date of purchase.

    Tape widths listed are typical, but material can be slit to many other widths; inquire about other options.

    * All tapes are slit to width at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Masking 101 Helpful Hints
    • Push down hard! This is a pressure sensitive adhesive tape - pressure is required for it to adhere properly to parts.
    • Clean parts thoroughly before applying tape.
    • Apply tape to dry surfaces only.
    • Tape is for intermittent, one-time use only.
    • Store rolls on end in a cool, dry place.
    • Shelf life is 12 months from date of purchase.

      Technical FAQ: Saint-Gobain CHR 2925-7

    • What is the maximum operating temperature for 2925-7 tape? The Saint-Gobain CHR 2925-7 is rated for a continuous operating temperature range of -100°F to 500°F (-73°C to 260°C). Its silicone adhesive is specifically formulated to maintain a strong bond under high-heat conditions without degrading.
    • Can 2925-7 be used for HVOF and Plasma Spray masking? Yes. This tape is specifically engineered for high-intensity thermal spray applications, including HVOF (High-Velocity Oxy-Fuel) and plasma spray. The laminated foil and glass cloth construction provides the necessary abrasion resistance to withstand grit blasting and the thermal reflectivity needed for intense spray cycles.
    • What is the total thickness of the F2925-7 laminate? The total tape thickness is 0.007 inches (7 mil). This includes a 0.0025-inch backing thickness, providing a low-profile mask that remains highly conformable to irregular surfaces and complex geometries.
    • How do I ensure the best adhesion for thermal spray masking? To prevent "flagging" or lifting during high-pressure spray cycles, parts must be thoroughly cleaned and dried before application. As a pressure-sensitive tape, you must apply firm pressure during installation to fully activate the silicone adhesive bond.
    • What is the shelf life of Saint-Gobain 2925-7? When stored on end in a cool, dry environment, this tape has a recommended shelf life of 12 months from the date of purchase.
