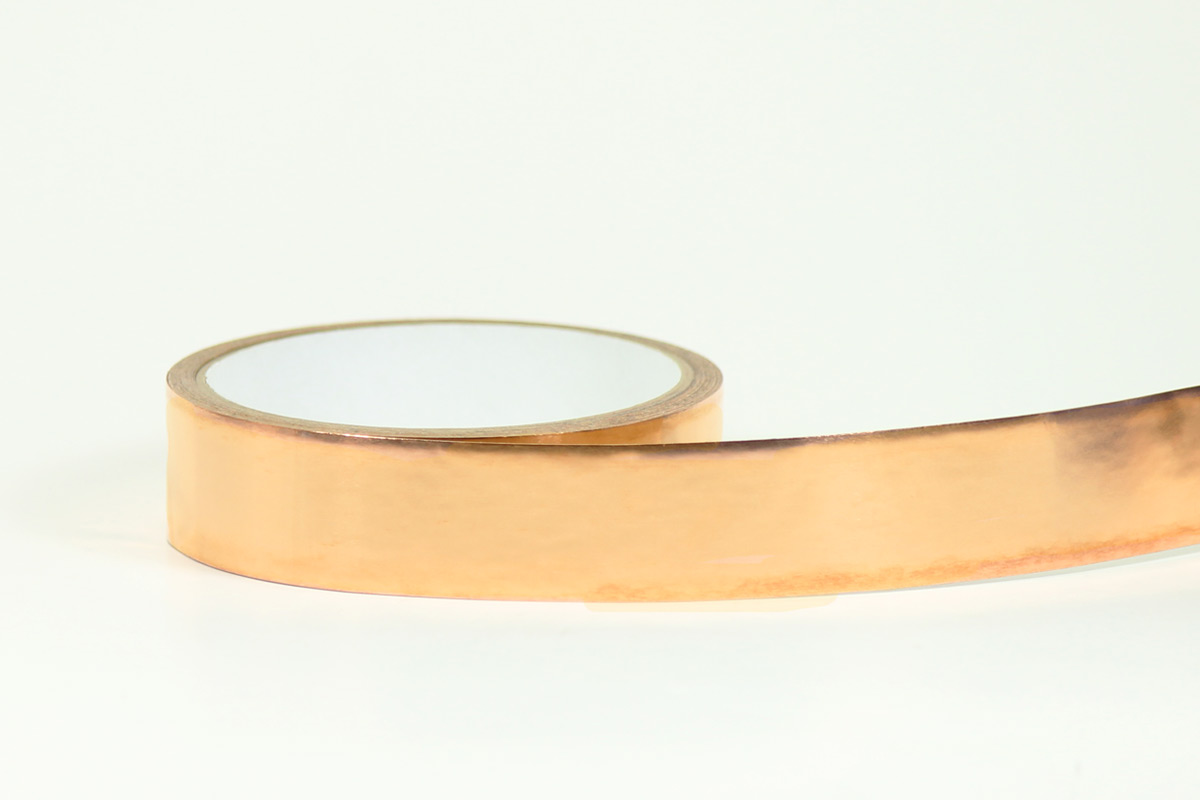

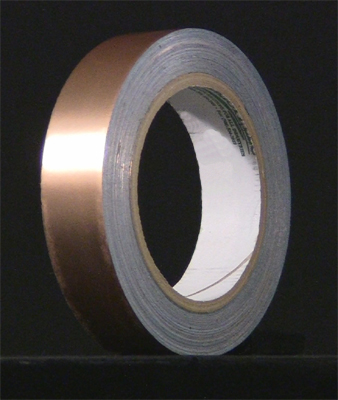

VT290L - Copper Foil Tape, with Liner

  • VT290L Copper Foil Tape with liner
  • VT290L Copper Foil Tape with liner

Copper Foil Tape, 250°F (shielding, industrial and electrical applications)

This is a zero-temper, high tensile copper foil tape of special electrolytic grade (see technical specs). The copper substrate accepts solder and is malleable. This tape may be used in industrial and electrical applications including printed circuit manufacture and repair, flexible flat conductor, electrostatic/EMI/RFI shielding and photovoltaic solar panel production.

With a temperature range from -40°F to 250°F (-34°C to 177°C), the aggressive acrylic adhesive forms a permanent bond to low surface energy materials and textured surfaces, as well as non-porous surfaces. The malleable foil conforms well to irregular shapes and surfaces. It is UL 510 listed (UL file #E137857).

Rolls are 36 yards long. Samples available upon request - Contact Us for more information. VT290L copper foil tape data sheet available in Technical Specifications tab, below.

NOTE: This tape is a non-stock item, and incurs a minimum buy. Please inquire for additional details.

  • Available Widths
    Part Number Decimal Width (inches) Fractional Width (inches) Roll Length (yards) Rolls / Case Ordering Info
    VT290L-0500 0.500 1/2 36 72 Contact Us
    VT290L-0750 0.750 3/4 36 48 Contact Us
    VT290L-1000 1 1 36 36 Contact Us
    VT290L-1500 1.50 1-1/2 36 24 Contact Us
    VT290L-2000 2 2 36 24 Contact Us
    VT290L-2500 2.50 2-1/2 36 12 Contact Us
    VT290L-3000 3 3 36 12 Contact Us

    NOTE: This tape is a non-stock item, and incurs a minimum buy. Please inquire for additional details.

    Samples available upon request - Contact Us for more information.

    * Tapes are slit to width at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Technical Specifications
    • Click here for VT290L copper foil tape data sheet
    • Temperature Range: -40°F to 250°F
    • Typical Uses: Used in industrial and electrical applications including printed circuit manufacture and repair, flexible flat conductor, electrostatic and EMI/RFI shielding.
    • Color: Copper
    • Carrier: 2 mils copper
    • Adhesive: Acrylic
    • High reflectivity
    • Wide temperature range
    • Shelf life: 12 months from date of purchase.



    NOTE: This tape is a non-stock item, and incurs a minimum buy. Please inquire for additional details.

    Samples available upon request - Contact Us for more information.

    * Tapes are slit to width at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Masking 101 Helpful Hints
    • Push down hard! This is a pressure sensitive adhesive tape - pressure is required for it to adhere properly to parts.
    • Anodizers: Clean lines are best achieved by masking parts 24 hours BEFORE anodizing.
    • Clean parts thoroughly before applying tape.
    • Apply tape to dry surfaces only.
    • Use paper or aluminum foil to cover a large surface area for less money; tape edges down.
    • Tape is for intermittent, one-time use only.
    • Store rolls on end in a cool, dry place.
    • Shelf life is 12 months from date of purchase.
