3M 8992 Lined Green Poly

  • 3M 8992 lined green polyester tape for CNC plotter-cut aerospace masking
  • Custom powder coat masking stencils made from 3M 8992 lined poly tape

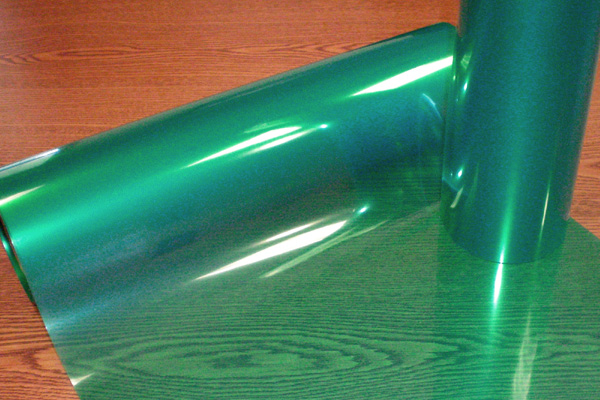

    3M 8992 Lined green polyester tape for plotters and vinyl cutters

The Plotter-Ready Solution for Custom Aerospace Masking

Why Aerospace & Custom Finishers Choose 3M 8992 Lined

  • Zero Tooling Costs: Cut standard shapes and complex, one-off geometries on your own plotter without waiting for custom die-cut manufacturing.

  • • High-Spec Performance: 3M 8992 is the industry standard for high-temperature (400°F) powder coating and chemical resistance to anodizing and plating baths.

  • Clean Lines, No Residue: Silicone adhesive ensures crisp masking lines on aerospace alloys with zero ghosting or adhesive transfer.

Make your own custom-shaped tape die cut with green polyester on release liner. This material is a great solution for metal finishers needing short run quantities of die cuts or even unique one-off designs.

Available for order in three standard widths at more affordable 36 yard lengths. These sizes work for most any die cutting machine - just choose a width narrower than your machine's maximum. Alternate widths can also be purchased, but require a 72 yards length. 3M 8992 lined green polyester tape data sheet available in Technical Specifications tab, below.

  • Standard Widths
    Part Number Width (inches) Length (yards) Rolls / Case Quantity (rolls)
    GPL-8 8 36 1 Add to Shopping List
    GPL-14 14 36 1 Add to Shopping List
    GPL-22 22 36 1 Add to Shopping List

    NOTE: Other widths may be available, but is dependent upon in-stock widths and usefulness of the off-cuts created. Please note that only the sizes listed above are generally available. 72 yards lengths may be available for pro-rated pricing.

    * All tapes are slit to width at time of order and cannot be returned for refund or credit. Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Technical Specifications
    • Click here for 3M lined green polyester tape tape data sheet
    • Total Thickness: 3.2 mil
    • Temperature Range: 32°F to 400°F
    • Typical Uses: Some customers are finding this is a good option for stencils / logos / masking for powder coating things like Yeti tumblers for the initial masking cure, compared to the Cricut vinyl tapes that sometimes leave residue due to the lower temperature rating.
    • Color: Translucent green
    • Carrier: 2 mil of green polyester material
    • Adhesive: 1.2 mil of silicone based adhesive
    • Excellent resistance to shrinking and solvents
    • Clean removal, no residue
  • Masking 101 Helpful Hints
    • Push down hard! This is a pressure sensitive adhesive tape - pressure is required for it to adhere properly to parts.
    • Clean parts thoroughly before applying tape.
    • Apply tape to dry surfaces only.
    • Use paper or aluminum foil to cover a large surface area for less money; tape edges down.
    • Tape is for intermittent, one-time use only.
    • Store rolls on end in a cool, dry place.
    • Shelf life is 12 months from date of purchase.



    Why do we emphasize the "American-made" aspect? Not only does it support American companies and workers, we know it is better quality than the "overseas-made" stuff.
    The liner is better, so your die cuts peel off more easily - that's less waste for you!
    The tape itself is better - we work with several states-side companies who ship the material within a few days of manufacture to our climate-controlled facility.
    Also, it has not been in a hot container crossing the Pacific Ocean for 8-12 weeks, degrading the adhesive and heat-resistance.
