Industrial Wet Spray Painting Masking:

Professional Solutions for Any Finish

Wet spray masking products can cover a variety of products. Some paints are air dry, some are heated to 160°F - 180°F, and others are sent through a bake process up to 300°F - 325°F. Viadon has a variety of products to cover all of these requirements though.

Industrial-EPDM-and-silicone-masking-plugs-for-wet-spray

High-temperature-crepe-masking-tape-325F-for-paint-bake-cycles

Material Type	Max Temp	Paint Compatibility	Best Use Case
VHTC1 High-Temp Crepe	325°F	Solvent & Water-Based	High-heat bake cycles; clean removal without residue.
VIGC Industrial Crepe	200°F	Mostly Water-Based	General purpose, air-dry, or low-temp forced dry.
PVC6 Vinyl Tape	180°F	Solvent & Water-Based	Complex curves and fine-line detailing; high stretch.
EPDM Caps & Plugs	300°F	High Solvent Resistance	Chemical stripping and aggressive solvent-based paints.
Silicone Caps & Plugs	500°F	Solvent & Water-Based	Extreme heat cycles; best "release" for heavy paint build-up.

For a range of available products and more details about each, see these pages for more info:

Caps & Plugs

Wet Spray Painting Caps & Plugs

For standard caps and plugs used during spray painting, often a lower temperature EPDM rubber plug or cap is sufficient, though some painting job shops prefer a cured silicone material.

Tapes

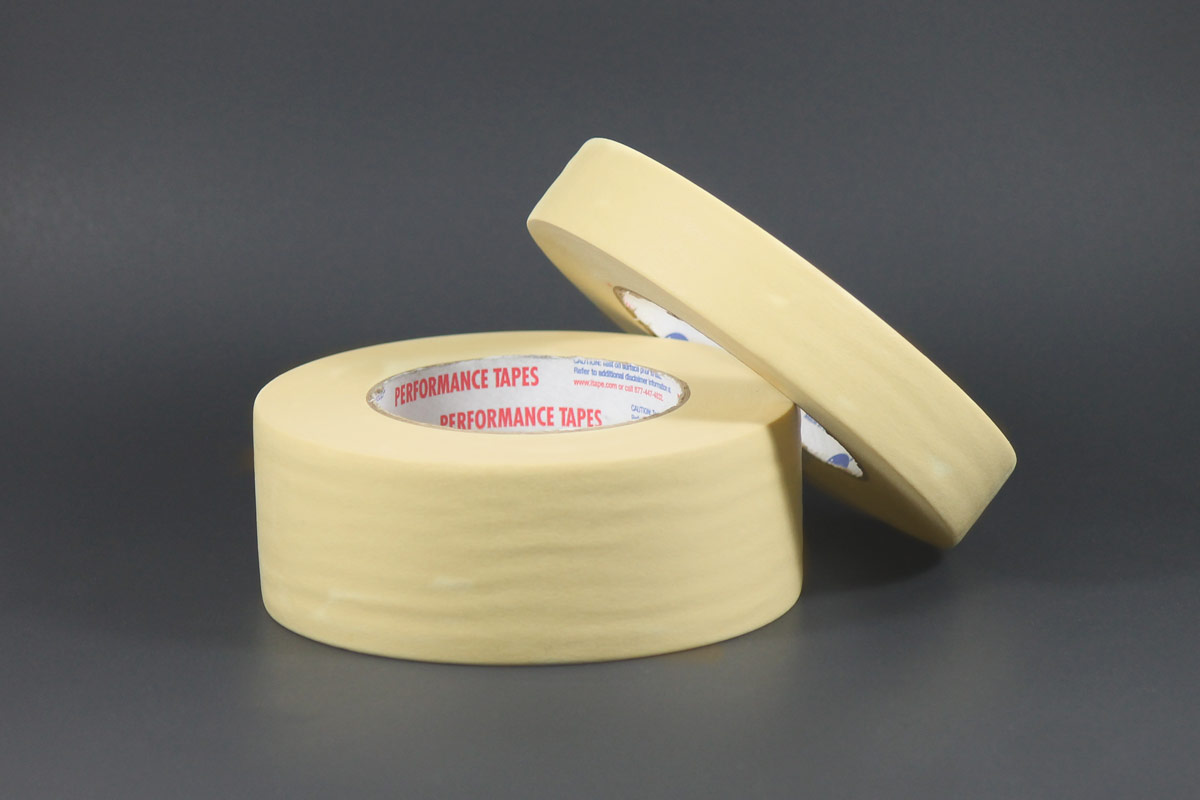

VHTC1 Wet Spray Painting Masking Tape (325°F)

For spray painting tapes, in higher temperature situations, look at our high temperature crepe tape rolls that are designed to be used up to 300°F - 325°F (and work best under warm-removal conditions).

VHTCD Wet Spray Painting Masking Die Cut Disks (325°F)

High temperature crepe tape disks are another wet spray painting masking standard, and a wide range of stock sizes are not only available, but custom sizes and other shapes are options as well.

Viadon's wet spray painting tapes are 'a cut above' many competitor's tapes, because they are American-Made . The same-day trip from manufacturer to our dock ensures fresh, USA-quality tape that will last up to 12 months without degrading in effectiveness. Just store on end in a cool, humidity-controlled location for best shelf life.

Other Masking Tape Options for Wet Spray Painting Include:

VIGC Industrial Grade Crepe Tape : Also conformable, slightly thinner, good for heat up to 200°F
PVC6 Vinyl tape for spray painting : Thick, stretch-able tape material for complex curves, handles temps to 180°F
VHTCD High temp crepe tape disks for spray painting : Industry-standard tape material; good for heat up to 325°F, hot or cold removal
VIGCD Industrial grade crepe tape disks for spray painting : Great, all-around low temperature crepe disks; good for heat up to 200°F

Viadon slits tape to width in-house, and die cuts wet spray painting tape disks to size, and offers custom-shapes die cutting as well.

The video below details how silicone tapered plugs are both best used, and situations when other plugs are better options. Click the link at the top of the page for more caps and plugs that are perfect for wet spray painting operations.

Silicone tapered plugs are useful for plugging a wide variety of holes. For high temperature and chemically resistant situations, silicone plugs are often an excellent choice. Learn more about how they can be put to use in the metal finishing industry for masking holes.

Frequently Asked Questions

Q: How do I prevent adhesive residue after a high-heat paint bake cycle?

A: To ensure a clean, residue-free removal, match your tape’s temperature rating to your oven’s peak heat. For cycles up to 325°F, our VHTC1 High-Temp Crepe Tape is designed for "warm removal" to prevent adhesive transfer.

Q: Can I use EPDM masking plugs with solvent-based paints?

A: Yes. EPDM is highly resistant to many solvents. However, for extreme chemical exposure or temperatures exceeding 300°F, Silicone Caps and Plugs are the superior choice for stability. Viadon stocks both - request a sample of each for testing purposes.

Q: Why is my masking tape lifting or "wicking" at the edges?

A: Lifting is often caused by surface contaminants or lack of pressure. Ensure parts are clean, and consider PVC6 Vinyl Tape for complex curves where high conformability is required.

Q: Does Viadon offer custom-shaped masking?

A: Absolutely. We provide Custom Die-Cutting and in-house tape slitting to meet the exact specifications of your industrial components.

What Pressure Sensitive Tapes Mean for Wet Spray Painting

Pressure-sensitive-adhesive-cross-section-masking-tape-adhesion-diagram

A cross-section representation of pressure sensitive adhesive (PSA) tape systems. Pressure must be applied to these tapes to increase adhesion, as the adhesive is activated with pressure and flows over time. The microscopic crevices the exists even on very smooth surfaces allow the adhesive to "grab" the surface even better after 24 hours from application.

The majority of Viadon's tape line utilize PSA's. Not all processes require a waiting period before use; often wet-spray painting masking can be applied and used in a short period of time. But in-line washers may cause less masking problems if the tape is allowed to sit for some time before parts with tape on them are run through. Or, if tapes are allowed to stay on parts for extended periods of time, they may be more difficult to remove, as the adhesive has achieved greater adhesion. However, note that the tape adhesion is enhanced when applied to clean parts. Balance needs accordingly for your metal finishing operations.
