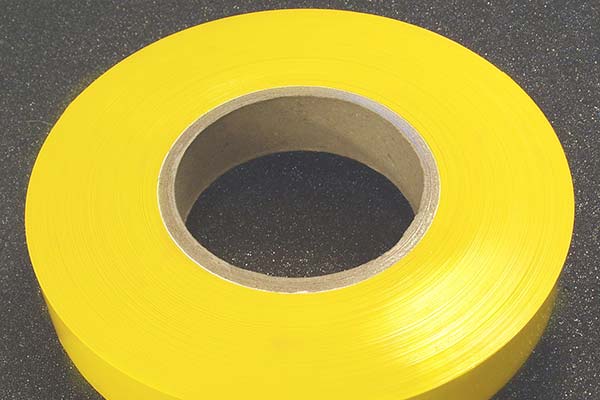

Non-Adhesive "Dry" Vinyl Tape

  • Non-adhesive dry vinyl tape, yellow

176°F (hard chrome plating, wire harness wrapping, anodizing, blasting)

4.0 mils thick, 176F non-adhesive/dry vinyl wrapping tape is chemical and solvent resistant. Clings to itself with superb conformability when stretch-wrapped around parts for hard chrome plating, anodizing, blasting or wire-harness applications.

Used in hard chrome plating or anodizing, this dry vinyl tape is ideal for wrapping around racks or parts where other tapes do not stretch or conform to the geometries. In automotive use, it is ideal for wire harness wrapping and cable bundling — clings to itself without damaging wires with adhesive residue.

Also conforms around complex shapes while withstanding continuous temperatures up to 176F. For blasting, offers zero sticky residue when removed - perfect for automotive/specialty vehicle applications.

Dry vinyl tape key features

  • - Easy to unwind
  • - Excellent conformability and "cling"
  • - Yellow color offers high visiblity
  • - 3" cores offer placement on standard tape machines

When better stop off is required for sharp edge line masking, use Viadon's PVC6 adhesive vinyl tape (can be used in conjunction with the non-adhesive/dry vinyl to hold ends securely).

Note: Case quantities are NOT required for this tape. Additional lead times may apply depending on width and quantity ordered.

PVC6YNA non-adhesive vinyl tape data sheet

  • Available Widths
    Part Number Width (inches) Length (yards) Rolls / Case Price/Roll Quantity (rolls)
    PVC6YNA-1/2 0.500 165 96 $7.82 / roll Add to Shopping List
    PVC6YNA-3/4 0.750 165 64 $8.76 / roll Add to Shopping List
    PVC6YNA-1 1 165 48 $12.74 / roll Add to Shopping List
    PVC6YNA-1 1/2 1.50 165 32 $16.92 / roll Add to Shopping List
    PVC6YNA-2 2 165 24 $21.23 / roll Add to Shopping List
    PVC6YNA-3 3 165 16 $27.87 / roll Add to Shopping List

    Note: Case quantities are NOT required; single rolls may be purchased provided total order exceeds our minimum order of $50.

    How to order: Add rolls to Shopping List, go to Shopping List (upper right of page), complete info, submit - even if outside business hours. We'll reach out for additional info such as credit card if not already a customer to finalize transaction and ship when you're all set up in our system. Future ordering is quick/easy then too.

    * Stock items are subject to availability, but are usually available for shipment within 24 hours and almost always ship same day.

  • Technical Specifications
    • Click here for PVC6 non-adhesive dry vinyl tape data sheet
    • Total Thickness: 4 mil
    • Temperature Range: Up to 176°F
    • Length: 165 yards (495 feet) on 3" cores
    • Color: Yellow
    • Adhesive: None
    • Tape Construction Materials: Vinyl
    • Shelf life: 24 months from date of purchase.
    • Compare to Echo 23-YLW00DV, EPSI V71, TapeCase TC76 & TC790, Sequoia GSV-1



    Note: Case quantities are NOT required for this material; only $50 minimum order.
    Additional lead times may apply depending on width and quantity ordered.

    * Stock items are subject to availability, but are usually available for shipment within 24 hours and most items ship same day.

  • Masking 101 Helpful Hints for Dry Vinyl Tape
    • Clean parts thoroughly before applying tape
    • Mask 2 to 3 times faster than adhesive vinyl tapes using reverse wrap method
    • Successfully used in hard chrome plating, Type ll and lll anodizing, blasting @ 60 to 100 PSI media sizes 180 to 50, vapor blast, paint (Boeing Epoxy primer on anodized aluminum, chemical milling on circular parts, masking top of printed circuit boards for fume protection, harness wrapping, protective wrap of parts to prevent corrosion / pipe wrap
    • High elongation (225%) / good strength (2000 PSI MIN) offers superb conformability on complex shapes and geometries
    • Wrap tape with some overlap; dry vinyl has good "self-cling" properties
    • Store rolls on end in a cool, dry place.
