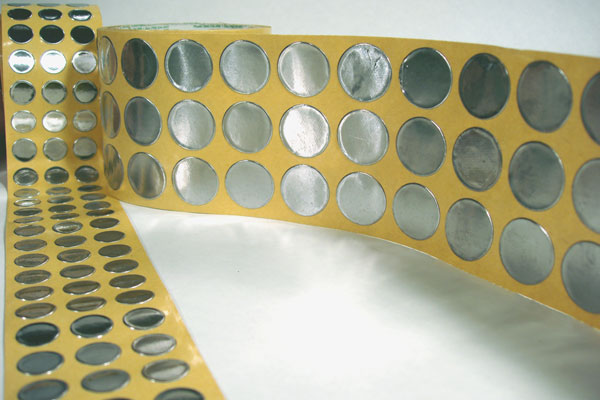

Lead Foil Tape Disks

  • Lead Foil Tape Disks
  •  See how Viadon makes tape die cuts from single-coated pressure sensitive adhesive tapes for the metal finishing industry and other applications. By Viadon LLC.
    How Tape Die Cuts are Made
  • Lead Foil Tape Disks

LFD series of tape die cuts, 275°F

These lead foil tape disks are often used in plating and anodizing masking applications. The significant weight of this metal means these can be used for situations where small amounts of corrective weight is required – for example, golf clubs.

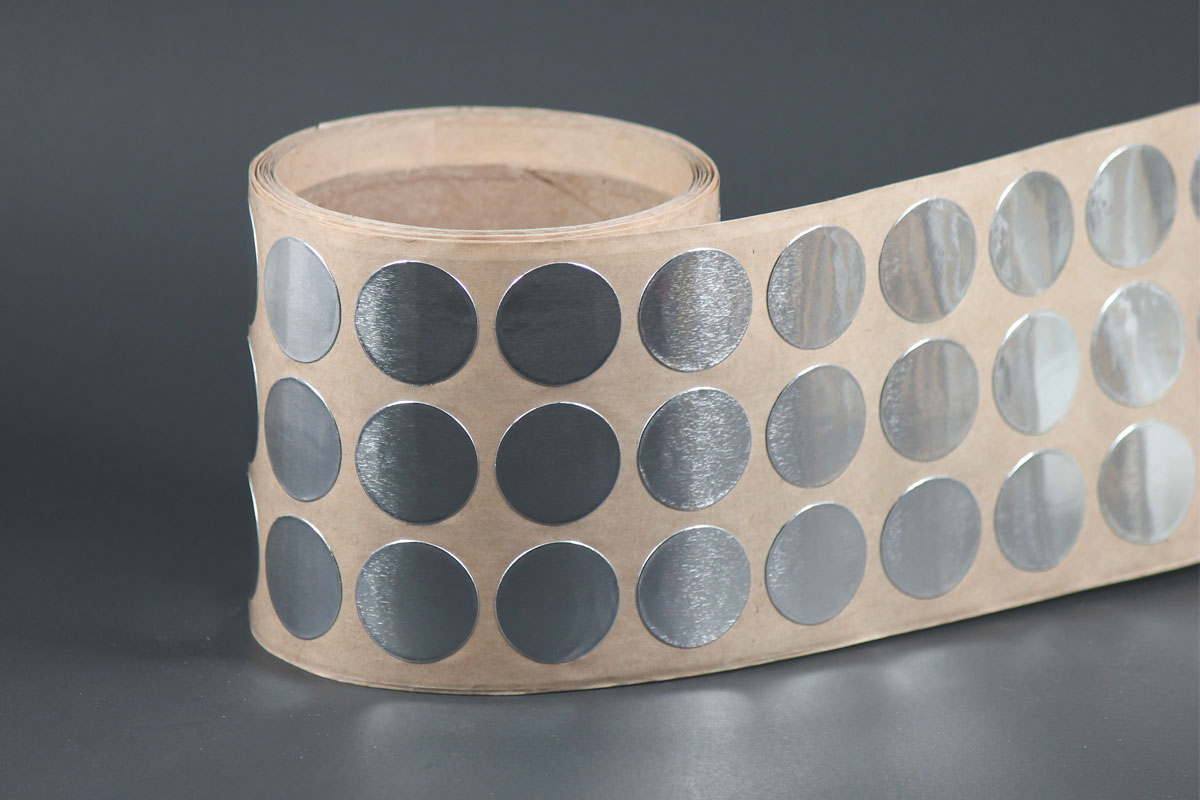

The adhesive is a pressure sensitive made from rubber resin. It adheres well to most surfaces, and is bonded to a 5 mils thick lead foil material, wound on a paper release liner. This allows for easy unwinding with a wrinkle-free appearance.

Viadon die cuts these disks in-house. So if you need a custom size or shape, just reach out and contact us for more information. We make tape die cuts into squares, donuts, rectangles, ovals, triangles, and all kinds of intricate / non-standard shapes.

This same material is also available in regular tape rolls.

NOTE: This tape is NOT intended to have clean-removal properties, and some adhesive may remain on the surface to which it is applied if the tape is removed. Use a commercially-available adhesive remover to clean excess adhesive.

  • Standard Diameters
    Part Number Diameter (inches) Quantity / Roll Price Quantity (rolls)
    LFD375 0.375 T.B.D. $103.60 Add to Shopping List
    LFD400 0.400 T.B.D. $Call or email Add to Shopping List
    LFD437 0.437 T.B.D. $Call or email Add to Shopping List
    LFD500 0.500 T.B.D. $Call or email Add to Shopping List
    LFD562 0.562 T.B.D. $Call or email Add to Shopping List
    LFD625 0.625 T.B.D. $Call or email Add to Shopping List
    LFD687 0.687 T.B.D. $Call or email Add to Shopping List
    LFD750 0.750 T.B.D. $Call or email Add to Shopping List
    LFD812 0.812 T.B.D. $Call or email Add to Shopping List
    LFD875 0.875 T.B.D. $Call or email Add to Shopping List
    LFD937 0.937 T.B.D. $Call or email Add to Shopping List
    LFD1000 1 T.B.D. $Call or email Add to Shopping List
    LFD1062 1.062 T.B.D. $Call or email Add to Shopping List
    LFD1125 1.125 T.B.D. $Call or email Add to Shopping List
    LFD1187 1.187 T.B.D. $Call or email Add to Shopping List
    LFD1250 1.250 T.B.D. $Call or email Add to Shopping List
    LFD1312 1.312 T.B.D. $Call or email Add to Shopping List
    LFD1375 1.375 T.B.D. $Call or email Add to Shopping List
    LFD1437 1.437 T.B.D. $Call or email Add to Shopping List
    LFD1500 1.500 T.B.D. $Call or email Add to Shopping List
    LFD1625 1.625 T.B.D. $Call or email Add to Shopping List
    LFD1750 1.750 T.B.D. $Call or email Add to Shopping List
    LFD1812 1.812 T.B.D. $Call or email Add to Shopping List
    LFD1875 1.875 T.B.D. $Call or email Add to Shopping List
    LFD2000 2 T.B.D. $Call or email Add to Shopping List
    LFD3000 3 T.B.D. $Call or email Add to Shopping List
    LFD4000 4 T.B.D. $Call or email Add to Shopping List
    LFD5000 5 T.B.D. $Call or email Add to Shopping List
    LFD6000 6 T.B.D. $Call or email Add to Shopping List

    NOTE: This tape is NOT intended to have clean-removal properties, and some adhesive may remain on the surface to which it is applied if the tape is removed. Use a commercially-available adhesive remover to clean excess adhesive.

    Viadon die cuts all tapes in-house. PLEASE Contact Us if you do not see the diameter or shape you need. Viadon can custom-cut squares, donuts, rectangles, ovals, triangles - plus intricate or other non-standard shapes can be made into tape die cuts as well. Disk sizes up to 24" are also available - ask us about larger stock sizes.

    Viadon has some of the most competitive tooling costs in the industry! Be sure to have Viadon quote your next custom die cut.

    * All tapes are die cut at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Technical Specifications
    • Temperature Max: up to 275°F
    • Typical Uses: Masking for plating and anodizing
    • Color: Silver
    • Carrier: 5.0 mils of dead soft lead foil material
    • Adhesive: 1.0 mil of acrylic-based adhesive
    • Excellent resistance to shrinking and solvents.
    • Malleable; conforms well to rough and irregular surfaces.
    • Shelf life: 12 months from date of purchase.



    NOTE: This tape is NOT intended to have clean-removal properties, and some adhesive may remain on the surface to which it is applied if the tape is removed. Use a commercially-available adhesive remover to clean excess adhesive.

    IMPORTANT: Lead dust may be present on tape. USE GLOVES when handling this product! Waste from this product should also be disposed in accordance with all applicable law and regulations - SDS available.

    Viadon die cuts all tapes in-house. PLEASE Contact Us if you do not see the diameter or shape you need. Viadon can custom-cut squares, donuts, rectangles, ovals, triangles - plus intricate or other non-standard shapes can be made into tape die cuts as well. Disk sizes up to 24" are also available - ask us about larger stock sizes.

    Viadon has some of the most competitive tooling costs in the industry! Be sure to have Viadon quote your next custom die cut.

    * All tapes are die cut at time of order and cannot be returned for refund or credit.
    * Stock items are subject to availability, but are usually available for shipment within 24 hours.

  • Helpful Hints
    • Push down hard! This is a pressure sensitive adhesive tape - pressure is required for it to adhere properly to parts.
    • Clean parts thoroughly before applying tape.
    • Apply tape to dry surfaces only.
    • For intermittent, one-time use only.
    • Store rolls on end in a cool, dry place.
    • Shelf life is 12 months from date of purchase.
